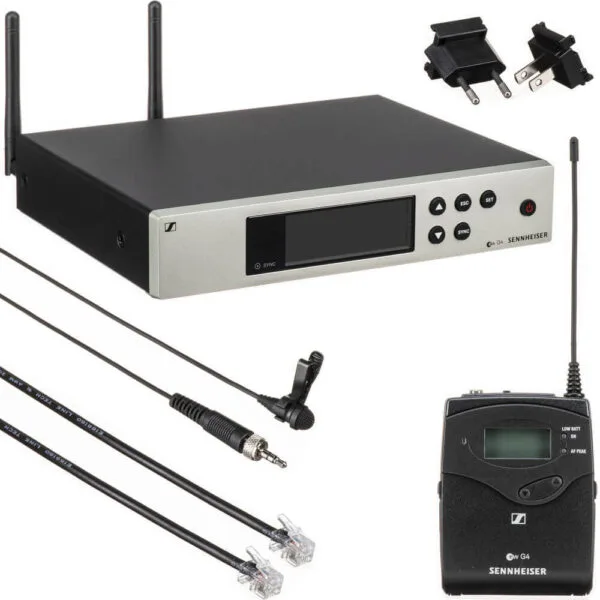

Sennheiser EW-100-G4 ME 2

• Frequency range 1G8: 1785 - 1800 MHz A: 516 - 558 MHz A1: 470 - 516 MHz AS: 520 - 558 MHz B: 626 - 668 MHz C: 734 - 776 MHz D: 780 - 822 MHz E: 823 - 865 MHz G: 566 - 608 MHz GB: 606 - 648 MHz JB: 806 - 810 MHz K+: 925 - 937,5 MHz • Dimensions Approx. 190 x 212 x 43 mm • Compander Sennheiser HDX • THD, total harmonic distortion ≤ 0.9 % • Weight Approx. 980 g • Audio output 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu • Signal-to-noise ratio ≥ 110 dBA • Switching bandwidth up to 42 MHz • Peak deviation ±48 kHz • Nominal deviation ±24 kHz • Modulation Wideband FM • Power supply 12 V DC • Antenna connector 2 BNC sockets • Current consumption 300 mA • Adjacent channel rejection Typically ≥ 65 dB • Intermodulation attenuation Typically ≥ 65 dB • Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels • RF sensitivity • Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBμV • Equalizer Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) • Temperature Range- -10 °C to +55 °C • Receiver Principle- True diversity • Blocking- ≥ 70 dB
