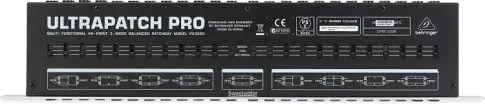

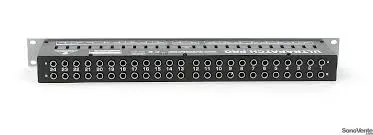

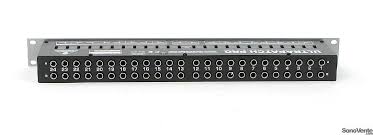

BEHRINGER PX3000 Ultrapatch Pro
✓ In Stock (3 available)
The Behringer Ultrapatch Pro PX3000 is a 48-point, fully balanced 1/4" TRS patchbay built to be the central signal-routing hub of any professional recording studio or live audio setup. With 24 channels across dual jack rows, it eliminates constant rewiring and keeps your signal flow clean, organized, and instantly reconfigurable. Fully passive — no power supply required — and housed in a rugged 19-inch 1U rack chassis, the PX3000 delivers true studio-grade routing flexibility. What sets it apart from older patchbays: top-panel slide switches let you change each channel's operating mode individually on the fly — no disassembly, no tools needed.
SKU: 000139
Description
Behringer PX3000 Ultrapatch Pro – 48-Point Fully Balanced Patchbay
48 Patch Points (24 Channels) — Dual rows of 1/4" TRS jacks per channel for complete front-to-rear signal routing across your entire rack
Fully Balanced TRS Connections — All 48 points use 1/4" TRS (Tip-Ring-Sleeve) connectors for noise-free, professional-grade balanced audio
Normal Mode — Rear top and bottom jacks are internally linked by default; inserting a front cable breaks the connection for full manual routing control
Half-Normal Mode — Keeps the internal rear connection intact while allowing a parallel signal tap from the front top jack — ideal for monitoring or splitting a feed without interrupting the main signal path
Thru Mode — Top and bottom rows operate as fully independent, isolated paths — perfect for patching outboard compressors, synthesizers, EQs, and effects units
Top-Panel Mode Switches — Switch each channel's operating mode individually with a simple slide switch — no screwdrivers, no disassembly required
Fully Passive Design — Zero power draw; no cables or adapters needed
19-Inch Rackmount, 1U — Standard slim rack format fits any professional rack (482.6 × 93 × 44.5 mm | 1.8 kg)
