Audio Interfaces • M-Audio

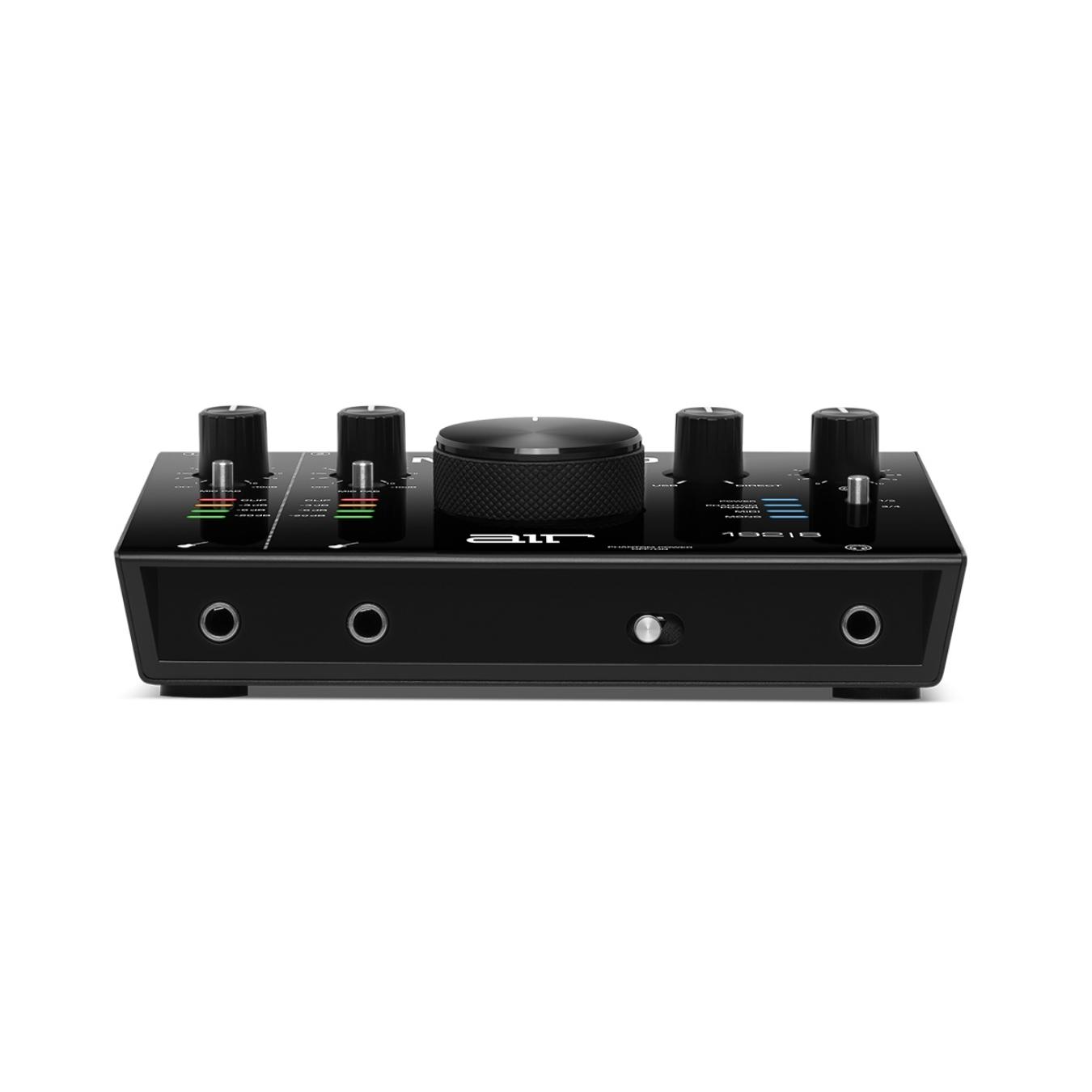

M Audio Air 192X8

Description

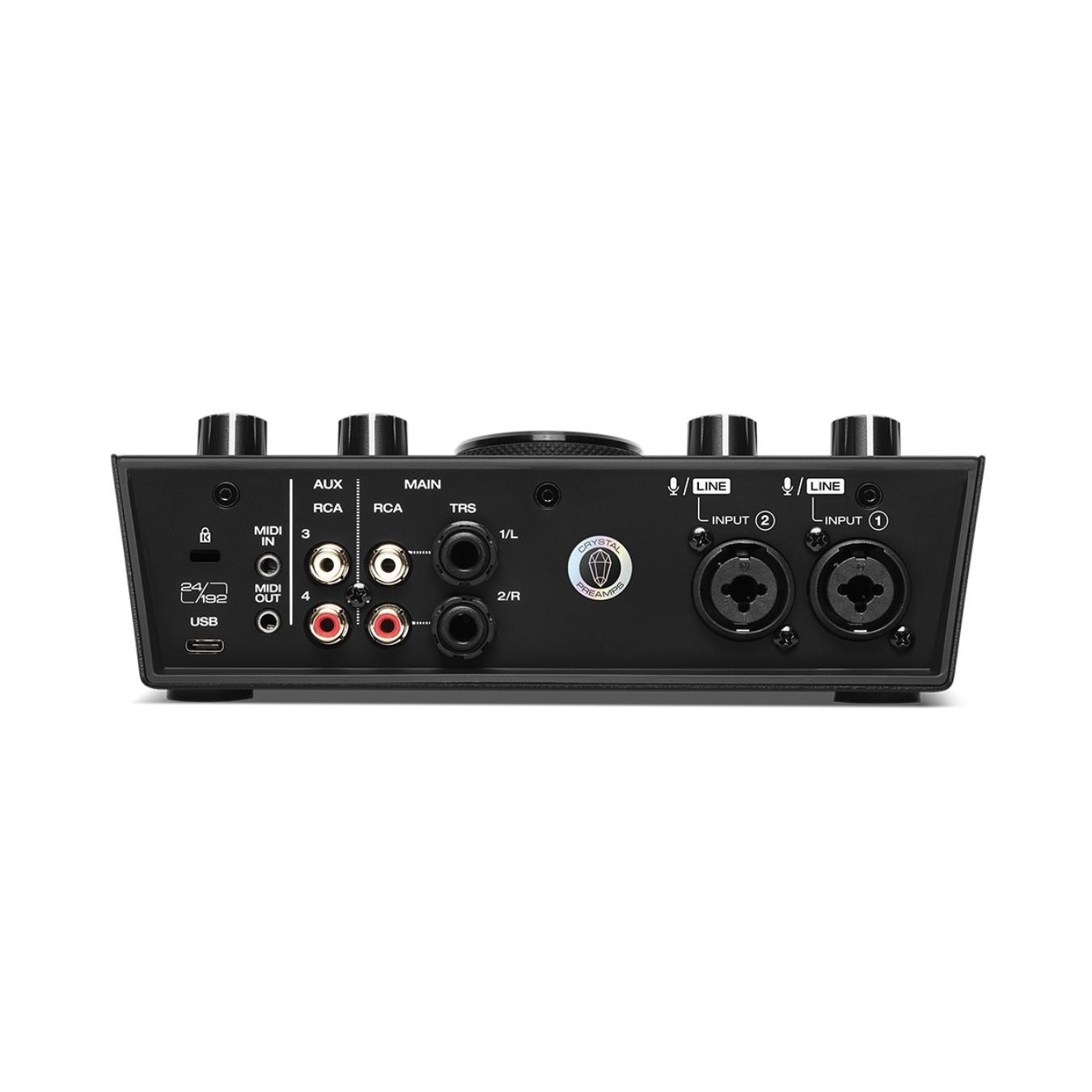

Key Features: • 24-bit/192kHz resolution for professional recording and monitoring • Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms* • Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality • VU LED meters for dialing in the perfect level • Flexible inputs: (2) XLR+¼” TRS combo with -10dB mic pad or ¼” instrument inputs • Use any combination of TRS combo or ¼” instrument input on the two channels:(2) TRS, (2) instrument or (1) of each • MIDI input/output for connecting virtually any external MIDI gear • Stereo ¼” and RCA outs with direct mono/stereo switch • (2) RCA assignable auxiliary outputs; ¼” headphone output with independent source and level controls • Rugged metal chassis; large central control for easy volume adjustment • USB/Direct knob for balancing between the input signal and the computer signal *Round trip latency is dependent on buffer settings, and computer hardware Specifications: Minimum System Requirements: macOS: 10.8 Class Compliant PC: Windows 7, Windows Driver Standard USB 2.0 or USB-C Port Mic Inputs: 1-2 (balanced XLR) FREQUENCY RESPONSE 20Hz – 20kHz (+/-0.1 dB) DYNAMIC RANGE: 104dB (A-weighted) SIGNAL-TO-NOISE RATIO: 104dB (+1.0dBu, A-weighted) THD+N 0.001% (1kHz, +0.8dBu, -1dBFS) PREAMP EIN: -126dBu (150Ω, unweighted) MAX INPUT LEVEL: +1.8dBu GAIN RANGE: 60dB Line Input: 1-2 (balanced 1/4" TRS) FREQUENCY RESPONSE: 20Hz – 20kHz (+/-0.1dB) SIGNAL-TO-NOISE RATIO: 101dB (1kHz, +4dBu, A-weighted) THD+N 0.002% (1kHz, +19.7dBu, -1dBFS) MAX INPUT LEVEL: +20.7dBu DYNAMIC RANGE: 106dB (A-weighted) Inst Input : 1-2 (unbalanced 1/4" TS) FREQUENCY RESPONSE: 20Hz – 20kHz (+/-0.1dB) DYNAMIC RANGE: 106dB (A-weighted) SIGNAL-TO-NOISE RATIO: 98dB (+4dBu, A-weighted) THD+N 0.001% (1kHz, +5.8dBu, -1dBFS) MAX INPUT LEVEL:+6.8dBu INPUT IMPEDANCE: ~1MΩ GAIN RANGE: 24dB Main TRS Outputs, 1/L & 2/R (balanced 1/4" TRS) FREQUENCY RESPONSE: 20Hz – 20kHz (+/-0.1dB) DYNAMIC RANGE: 109dB (A-weighted) THD+N 0.003% (1kHz, -1dBFS) MAX OUTPUT LEVEL +13dBu Main & Aux RCA Outputs: 1 - 4 (Unbalanced RCA) FREQUENCY RESPONSE: 20Hz - 20kHz (+/-0.1dB) DYNAMIC RANGE: 109dB (A-weighted) THD+N 0.003% (1kHz, -1dBFS) MAX OUTPUT: +7dBu Headphone Outputs (Stereo 1/4" TRS) DYNAMIC RANGE: 101dB THD+N 0.008% (1kHz, -1dBFS, 36mW) MAX POWER: 36mW (32-ohm load) MIN IMPEDANCE 32-ohm
